UE4 – Day and Night Cycle for Multiplayer (Part 1)

Accurate Day Night Cycle

Let’s start by creating Day Night Cycle Rules. This will be a structure. We’ll create this in C++. We’re going to make a full C++ version of this project, so this will work as an introduction to Unreal C++.

After this post is published i’ll create another post of full C++ version.

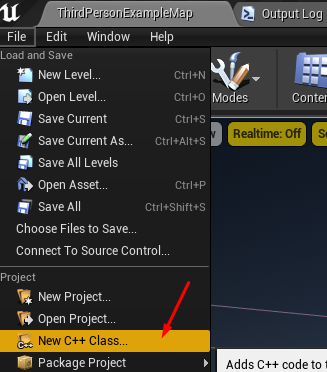

Create New C++ Class:

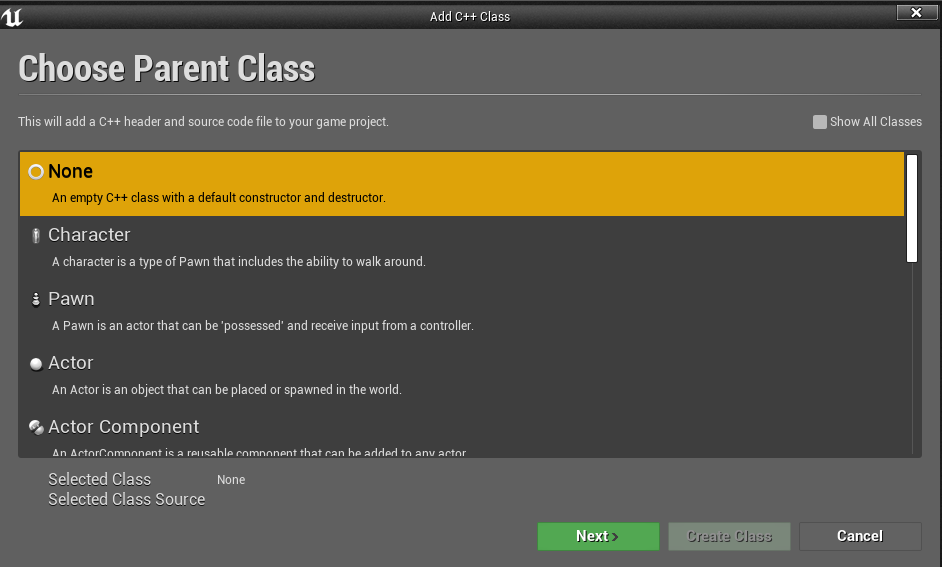

Select None:

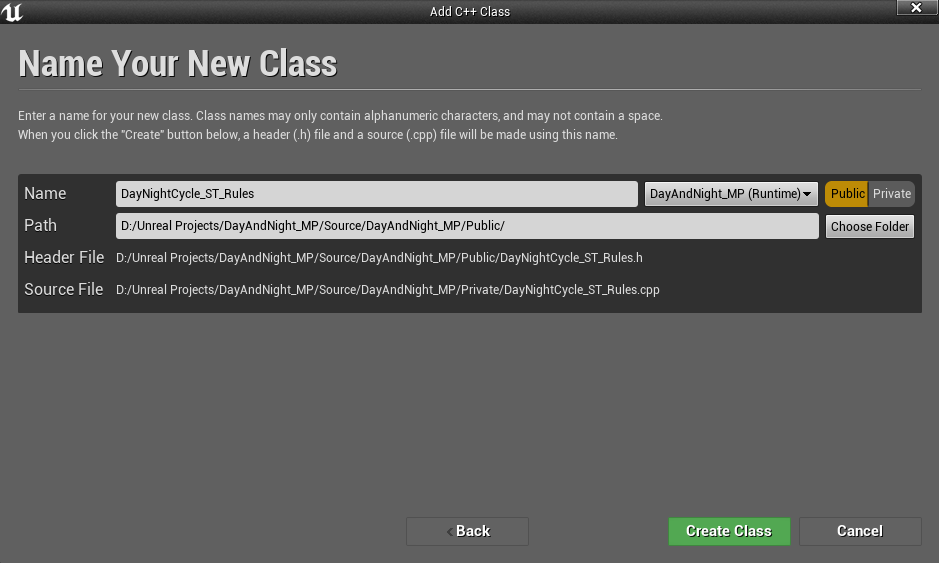

Name it and select Public, make sure you have project name selected from drop down list (DayAndNight_MP), you can also save it in plugin:

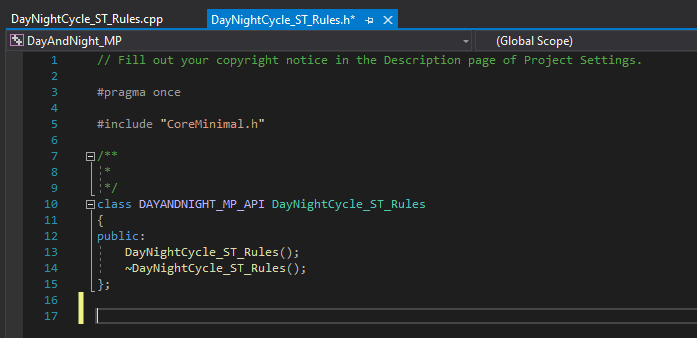

Go to xxxx.h file and remove existing class thingy.

Structure layout goes like this, structures need F prefix in their name:

USTRUCT(BlueprintType)
struct FDayNightCyclerRules_cpp {
	GENERATED_BODY()
public:

};

Because we added GENERATED_BODY we need to include generated.h file.

Which in this case is:

#include "DayNightCycle_ST_Rules.generated.h"

Now we can add variables into our structure, inside public. We need UPROPERTY and visibility identifier, like this:

UPROPERTY(BlueprintReadWrite)
bool Silly;

Final thing looks like this:

#pragma once

#include "CoreMinimal.h"
#include "DayNightCycle_ST_Rules.generated.h"

USTRUCT(BlueprintType)
struct FDayNightCyclerRules_cpp {
	GENERATED_BODY()

	FDayNightCyclerRules_cpp()
	: Latitude(45.0f), Longitude(-73.0f), TimeZone(-5.0f), MoonLightStrength(0.05f), MoonDistance(50000.0f), MoonSize(50.0f)
	{}
public:
	//Day Night Cycle Start time from real world
	UPROPERTY(BlueprintReadWrite)
	FDateTime RealWorld_StaticStartTime;
	//Day Night Cycle Start time in game world
	UPROPERTY(BlueprintReadWrite)
	FDateTime GameWorld_StaticStartTime;
	//The Real World Time in Game World Time (24 hours)
	UPROPERTY(BlueprintReadWrite)
	FTimespan RealWorldTimeInGameTime;
	//-89.99 / 89.99
	UPROPERTY(BlueprintReadWrite)
	float Latitude;
	//-180 / 180
	UPROPERTY(BlueprintReadWrite)
	float Longitude;
	//-12 / 14
	UPROPERTY(BlueprintReadWrite)
	float TimeZone;
	//-360 / 360
	UPROPERTY(BlueprintReadWrite)
	float NorthOffset;
	//Display Moon
	UPROPERTY(BlueprintReadWrite)
	bool Moon;
	//Moon light strength, use small values 0,05
	UPROPERTY(BlueprintReadWrite)
	float MoonLightStrength;
	//Moon Distance
	UPROPERTY(BlueprintReadWrite)
	float MoonDistance;
	//Moon Size
	UPROPERTY(BlueprintReadWrite)
	float MoonSize;
};

Delete DayNightCycle_ST_Rules.cpp file and then compile using Compile button in Unreal. Compile button should appear when C++ class is added. If you compile in Visual Studio you have to reopen the project to see changes.

Remove everything from Level Blueprint.

Also add this one too (in same file):

USTRUCT(BlueprintType)
struct FUTCTimeDifference_cpp {
	GENERATED_BODY()
public:
	UPROPERTY(BlueprintReadWrite)
		FTimespan TimeDifference;
	UPROPERTY(BlueprintReadWrite)
		bool SetByController;
};

Add both structures in SynSky.

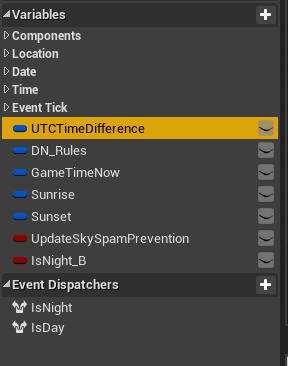

Add other variables and event dispatchers.

  • GameTimeNow Date Time
  • Sunrise Time span
  • Sunset Time span
  • UpdateSkySpamPrevention boolean
  • IsNight_B boolean

Add two event dispatchers IsNight and IsDay.

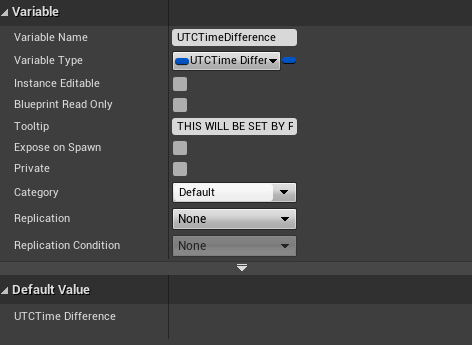

This one is FUTCTimeDifference_cpp structure:

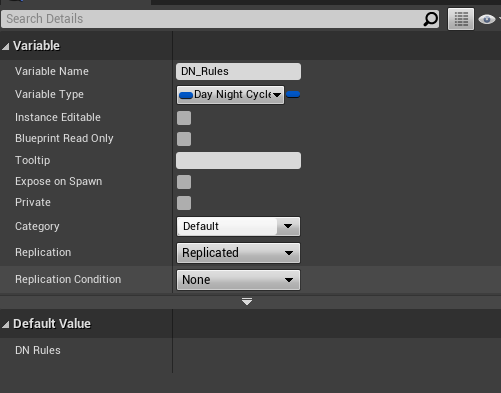

This is FDayNightCyclerRules_cpp structure (Replicated):

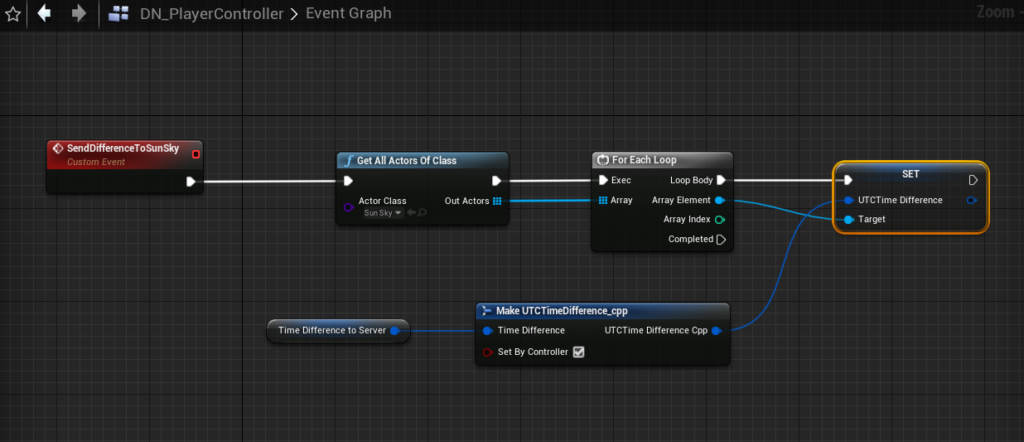

Go back to DN_PlayerController and finish SendDifferenceToSunSky.

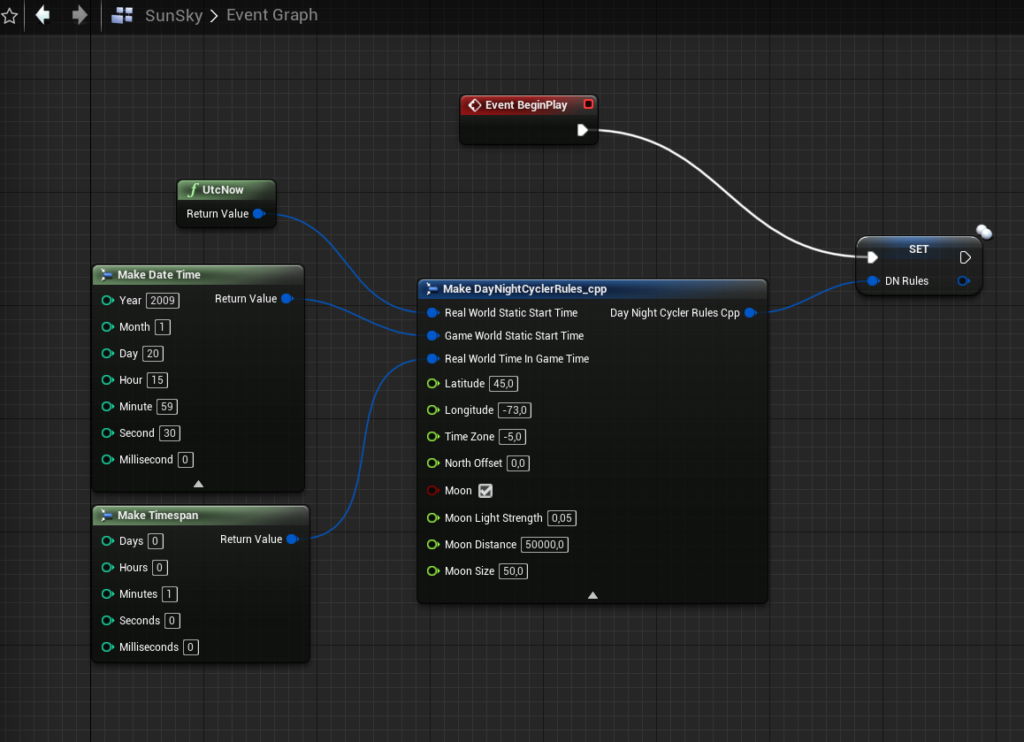

Now in SunSky add BeginPlay event and set DN_Rules. RealWorldStatic_StartTime should be set only on server but in this case it doesn’t matter that much because we have time sync.

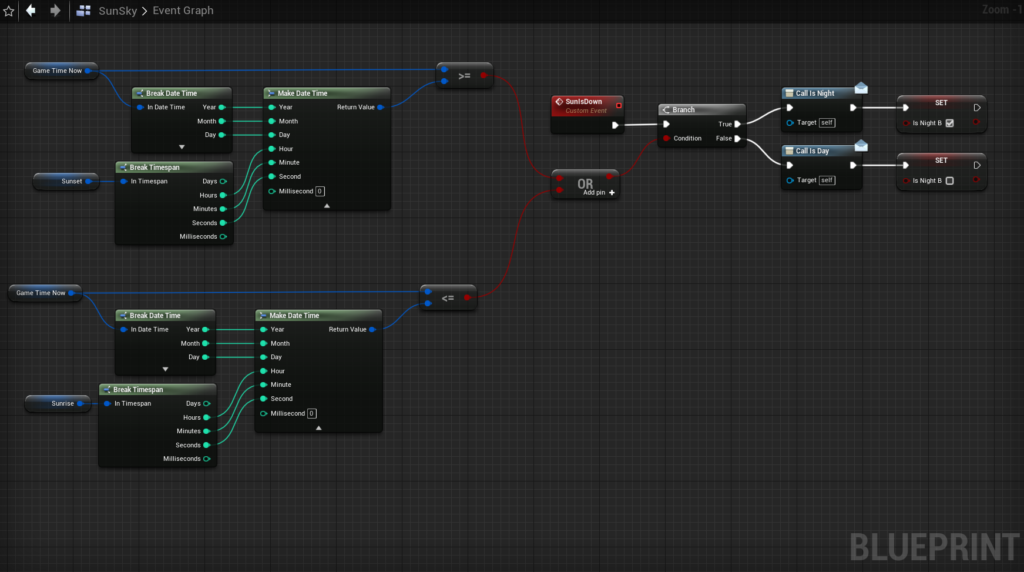

Create SunIsDown event, this will help us identify when it’s night and day.

Click for full resolution.

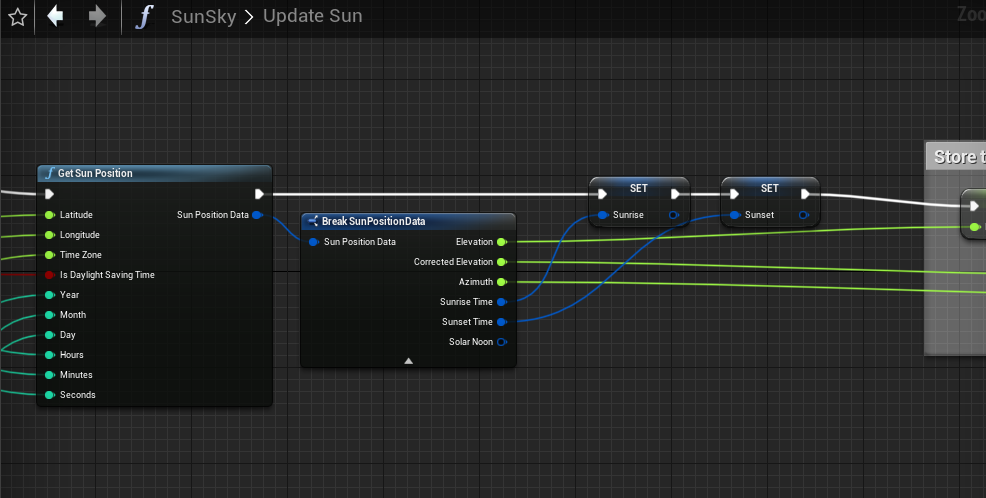

Go to UpdateSun function and set Sunrise and Sunset variables.

So what we want to do is make Game World Time do 100% in x Real World Time.

GameTimeNow variable is where Game World Time currently is. This is where we put the result.

100% of Game World Time is 24 hours.

Let’s define 5 minutes of Real World Time to Game World Time.

We have Real World Start Time and Game World Start Time. And then we have Real World Time Now.

All variables:

  • GameTimeNow (result)
  • RealWorldStart (06/10/2020 21.31.44)
  • GameWorldStart (06/10/2009 15.23.11)
  • RealWorldTimeNow (clock)
  • RealWorldTimeinGameTime 300 seconds

So in 5 minutes 24 hours happens in game.

We’ll take 50% off from that we’ll get 2.5 minutes and 12 hours or 43200 seconds. We can use this to check if our formula is correct.

How much game time has passed in one second? 86400/300 = 288 seconds or 4 minutes 48 seconds.

So 2.5 minutes have passed how much game time has passed? 43200 = 288 x (60 x 2,5) AND THERE WE GO!

GameTimeNow = (86400 / RealWorldTimeinGameTime) * (RealWorldTimeNow - RealWorldStart)

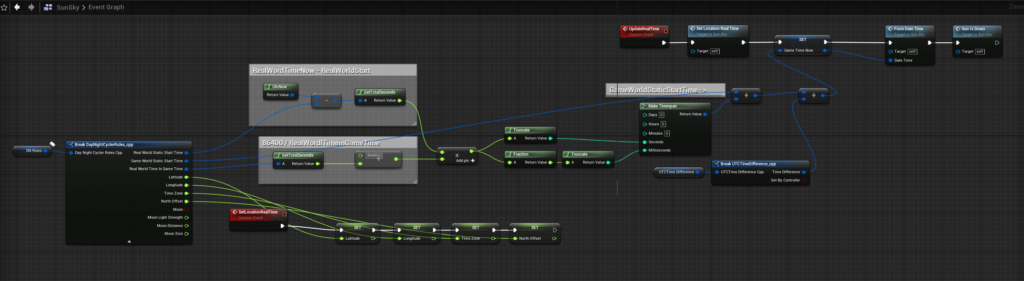

Then we put it all into UpdateRealTime event.

Click for full resolution.

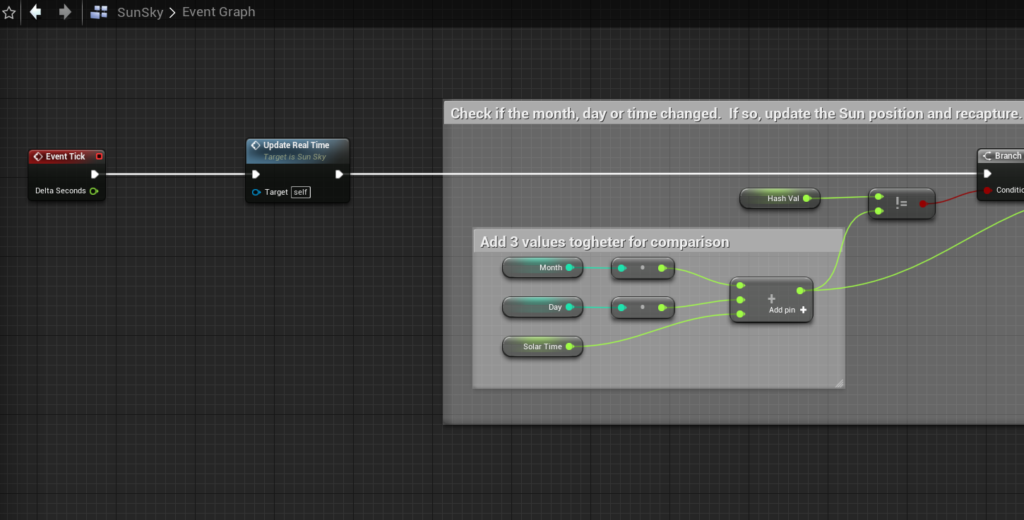

Then add the function to event tick.

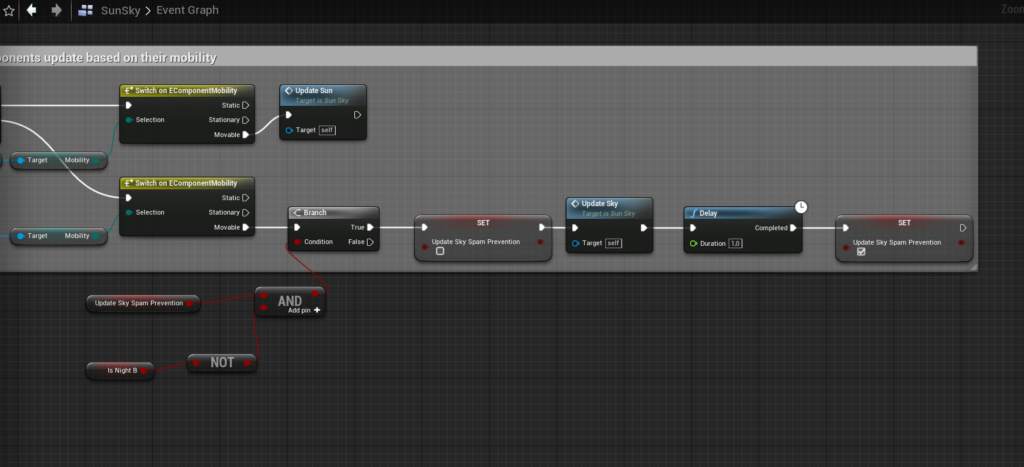

The last thing to do is prevent skylight recapturing every frame because that will decrease frame rate. We wan’t to use boolean to do this. We’ll set boolean to true after some time and after recapture.

If you didn’t remember to clean up Level Blueprint do it now.

And test it! The Sun should do a full circle in 1 minute with these settings.
